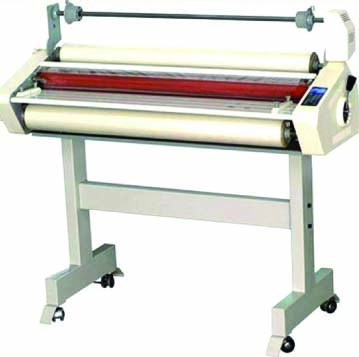

    Roll-to-Roll Laminating Machine

  • Protect, enhance and preserve your documents with our Roll Lamina tors.
  • Add style and look and strength with ease.
  • Works great for maps, charts, posters, promotional material, photographs, blueprints, colanders’,
  • artwork, menus, book kickers etc...
  • Easy Feed & Cut mechanism helps handle any quality, small or large, with no material wasted.
  • Direct heat rollers help laminate smaller documents in pouch film.

    •

    1







    2







    3



    Features

    • High quality silicone direct heat rollers.

    • Micro Controller based heat control system.

    • Key pad operated control panel for precise temperature and speed settings.

    • Easy Film loading mechanism.

    • Bright back light LCD display.

    • Elegant design.

    • Heavy duty Motor, for continuous operation.

    • Steel metal stand with wheels.(Operational)



    Specifications:

    Model YL-FM350(A3) YL-FM650(A1) YL-FM1055(A0) HD-370 HD-380
    Max. Laminating Width 335mm 635mm 1040mm 370mm 380mm
    Max. Laminating Thickness 6mm 6mm 6mm 2.5mm 1mm
    Laminating Film Thickness 30micron-250mocron 30micron-250mocron 30micron-250mocron 30micron-250micron 30micron-250micron
    Speed 0.5~4.5m/Minute 0.5~4.5m/Minute 0.5~4.5m/Minute 5m/min 7m/min
    Speed Adjust YES YES YES YES YES
    Displaying LED LED LED LCD LCD
    Rollers 4rollers(2hot,2cold) 4rollers(2hot,2cold) 4rollers(2hot,2cold) 4rollers(2cold,2hot) 4rollers(2cold,2hot)
    Ready Time 10minutes 10minutes 15minutes 8-10min 10min
    Power Consumption 800W 1200W 1600W 1300w 3000w
    Voltage 110V,50Hz/220V,60Hz 110V,50Hz/220V,60Hz 110V,50Hz/220V,60Hz 110V,50Hz/220V,60Hz 110V,50Hz/220V,60Hz
    Pieces/Carton 1 1 1 1 1
    Carton Size(cm) 70*60*40 105*57*43 148*67*74 57*40.8*32.2CM 610*615*460MM
    G.W/N.W 42Kg/35Kg 75Kg/65Kg 155Kg/115Kg 28/25Kg 45/40Kg

    Note: Specifications are subject to change without notice.
